Blum Locking Device For Tandem Drawer Slides

TANDEM

Easy assembly and installation

TANDEM gives you an extensive range of options. and yet assembly is always the same.

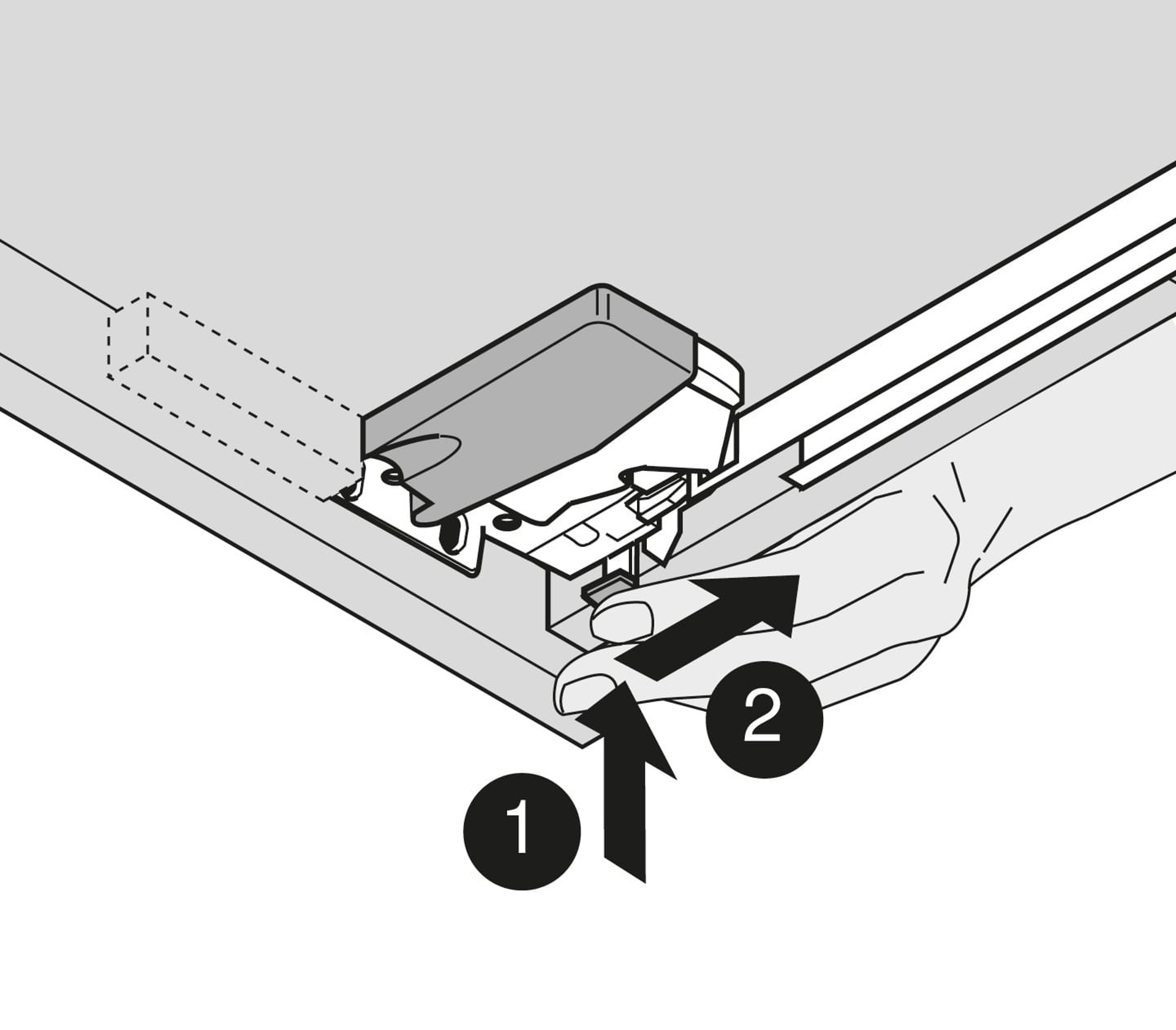

Assembly with locking device feature

The TANDEM locking device allows you to attach and remove the drawer in no time. An integrated lift-off stop prevents accidental detachment. Height adjustment allows differences of up to 3 mm to be balanced out. The front can be aligned parallel to the cabinet front edge using the tilt adjustment feature.

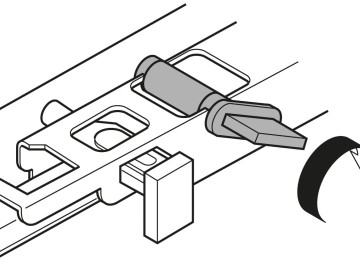

Height adjustment

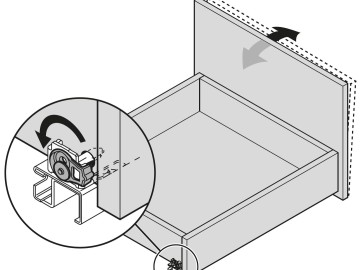

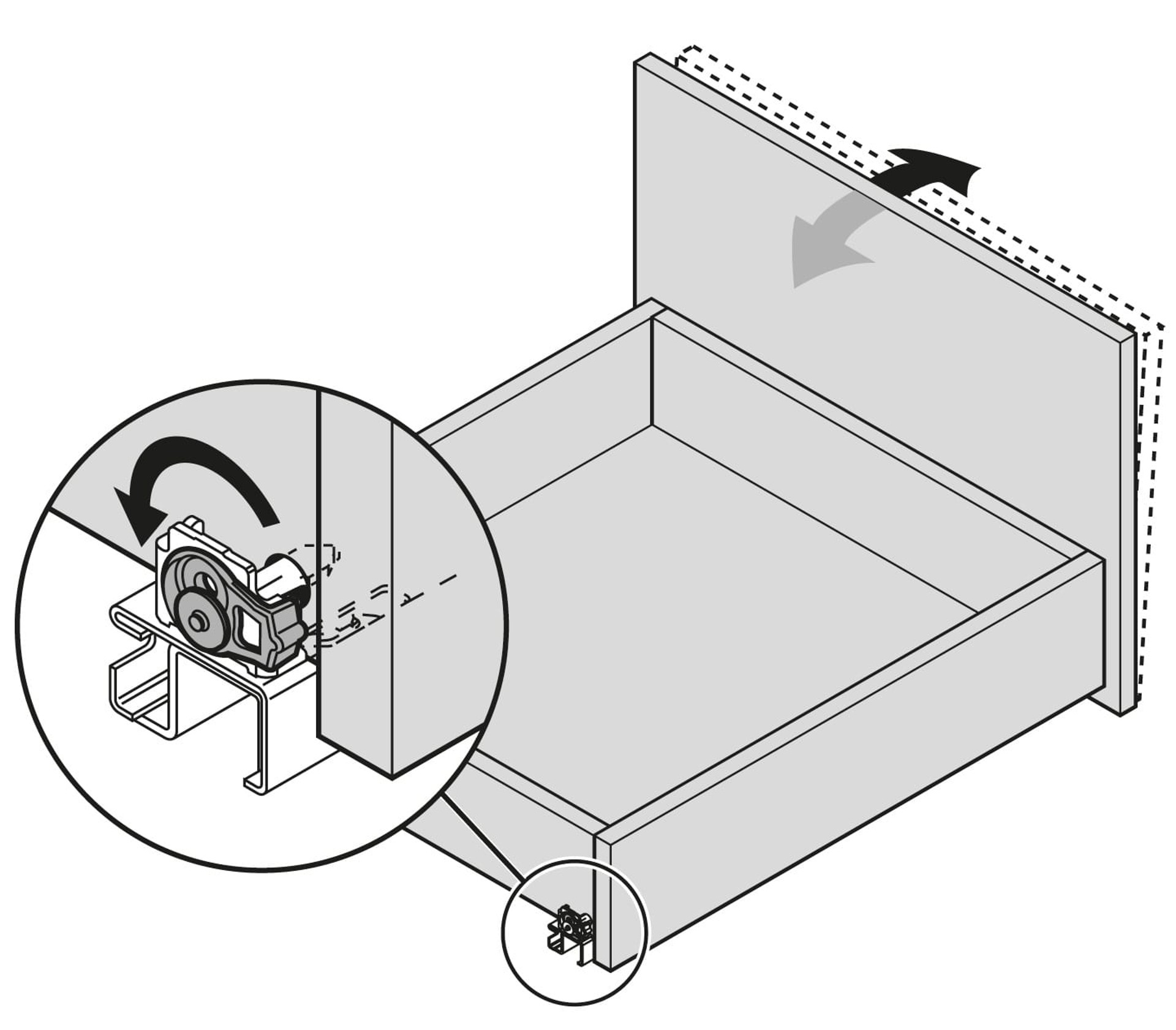

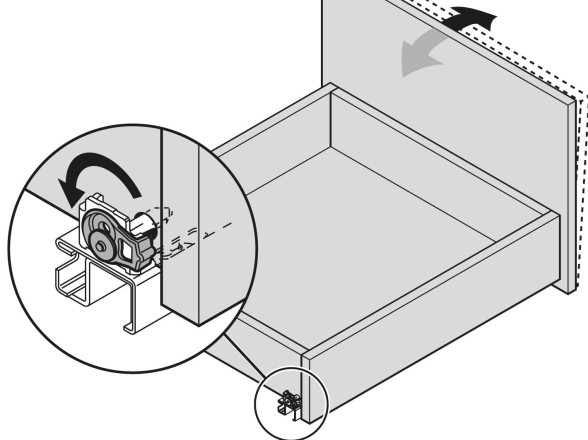

Tilt adjustment for full extensions

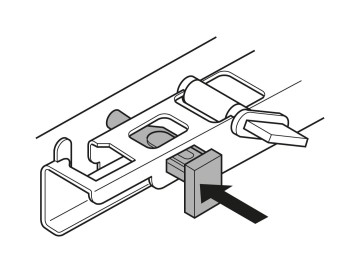

Side adjustment

Assembly with hook and peg feature

Place the drawer on the runner, pull forwards, done. The lift-off stop prevents accidental detachment from the runner. Fine tuning takes just a few steps: up to 2.5 mm can be corrected using the tool-free height adjustment feature, while the integrated front tilt adjustment feature allows for effortless alignment of the front.

Side adjustment

Height adjustment

Tilt adjustment for full extensions

Lift-off stop

Support every step of the way

We offer bespoke services and assembly devices for the TANDEM runner system. We support you along the entire process chain: our E-SERVICES help you to plan, design and choose products around the clock. In addition to drilling and insertion machines, we also offer special drilling templates for furniture production, such as for TANDEM with the hook and peg feature or for the TANDEM front adjuster.

Installation instructions

Assembly devices

Go to Assembly Device Selector

Open catalogue
